AI Rendering in VS Code

JSXGraph AIR for Visual Studio Code

Artificial Intelligence Renderer – Powered by JSXGraph

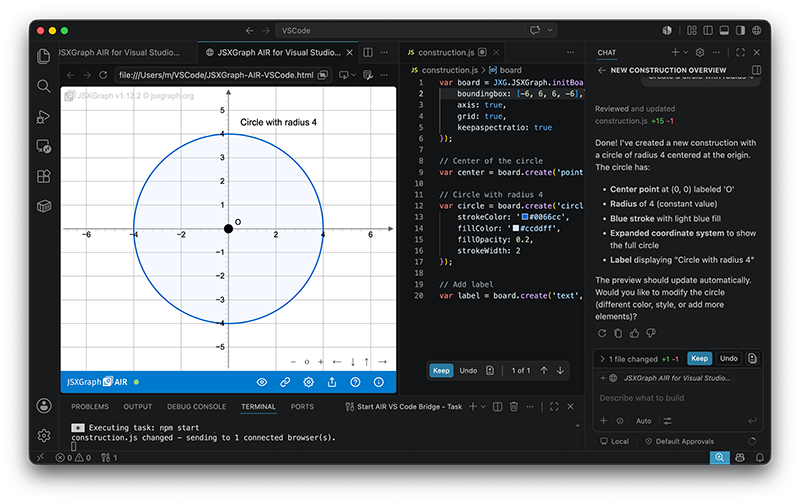

Create JSXGraph illustrations with AI assistance, right from your editor. JSXGraph AIR for Visual Studio Code turns a browser tab into a live preview for your JSXGraph constructions: let GitHub Copilot (or any AI assistant in VS Code) write the code in construction.js — every save instantly updates the rendered construction.

Additional libraries such as MathJax or custom CSS can be added via header.js, guarded by a configurable allowlist. When you’re done, export your work as a single self-contained HTML file or copy it straight to the clipboard.

Features

• Works with or without AI — the renderer simply reflects the current file content. Every edit in the editor is applied on save: handwritten code, pasted snippets, and AI-generated constructions are all treated exactly the same.

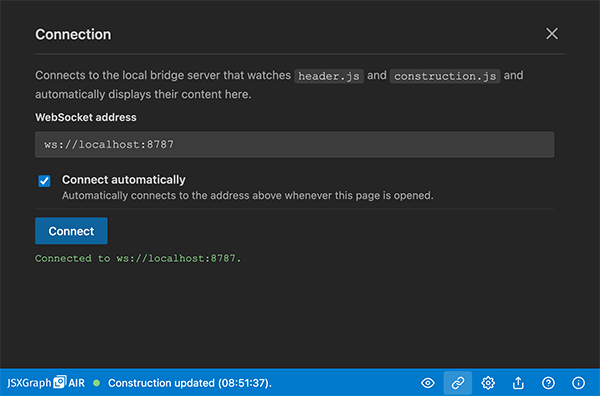

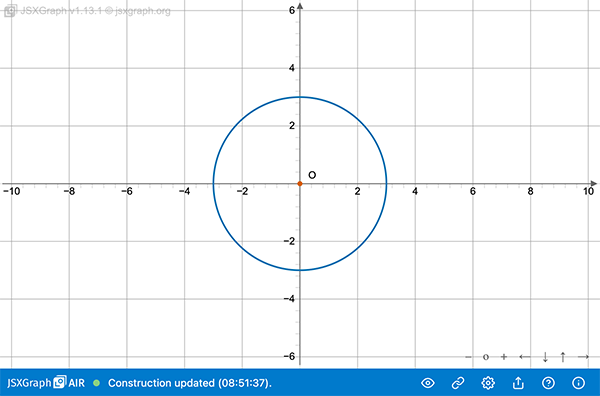

• Live preview — file changes appear instantly via a local WebSocket bridge
• AI-ready — pairs naturally with GitHub Copilot and any editor-based AI assistant, without depending on one

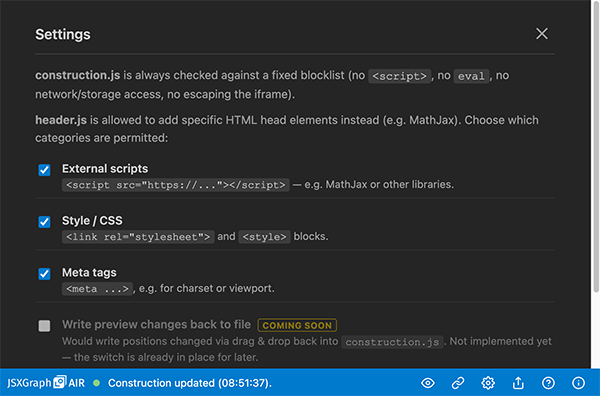

• Built-in security checks — blocklist for generated construction code, structured allowlist for header content

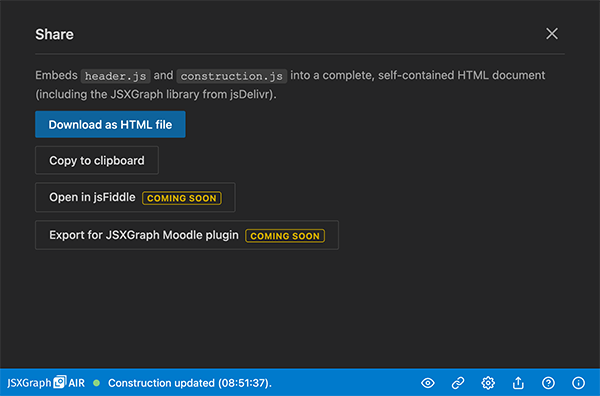

• One-click export — standalone HTML file or clipboard
• VS Code look and feel — auto-connect, settings stored locally

Requirements

• Node.js (LTS version recommended) — runs the local bridge server that watches your files; includes npm for the one-time dependency installation. Download from nodejs.org.
• Visual Studio Code — the editor in which you (or your AI assistant) write construction.js and header.js. Download from code.visualstudio.com.
• GitHub Copilot extension (optional, recommended) — for AI-assisted code generation; requires a GitHub account with an active Copilot subscription. Any other editor-based AI assistant works as well — the preview only reacts to file changes, regardless of who wrote them.
• A modern web browser (Chrome, Firefox, Safari, Edge) — displays the live preview page Internet connection — required for loading the JSXGraph library from CDN and for Copilot; the bridge server itself runs entirely locally.

GitHub

JSXGraph AIR for Visual Studio Code is published on GitHub:

JSXGraph AIR for Visual Studio Code

Download

Get the package (preview page + bridge server) here:

Download JSXGraph-AIR-for-VSCode.zip

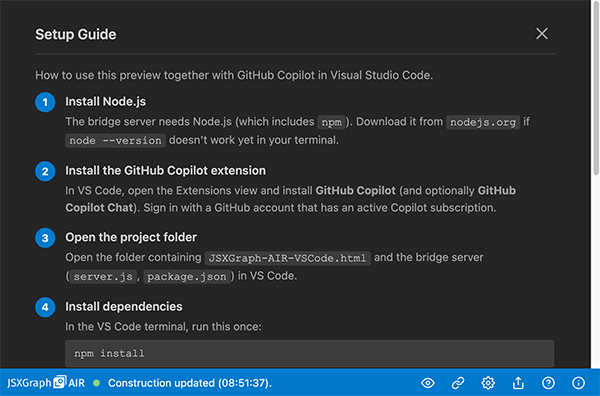

Unzip, run npm install and npm start, then open JSXGraph-AIR-VSCode.html in your browser — the step-by-step setup guide is built into the page (? icon).
